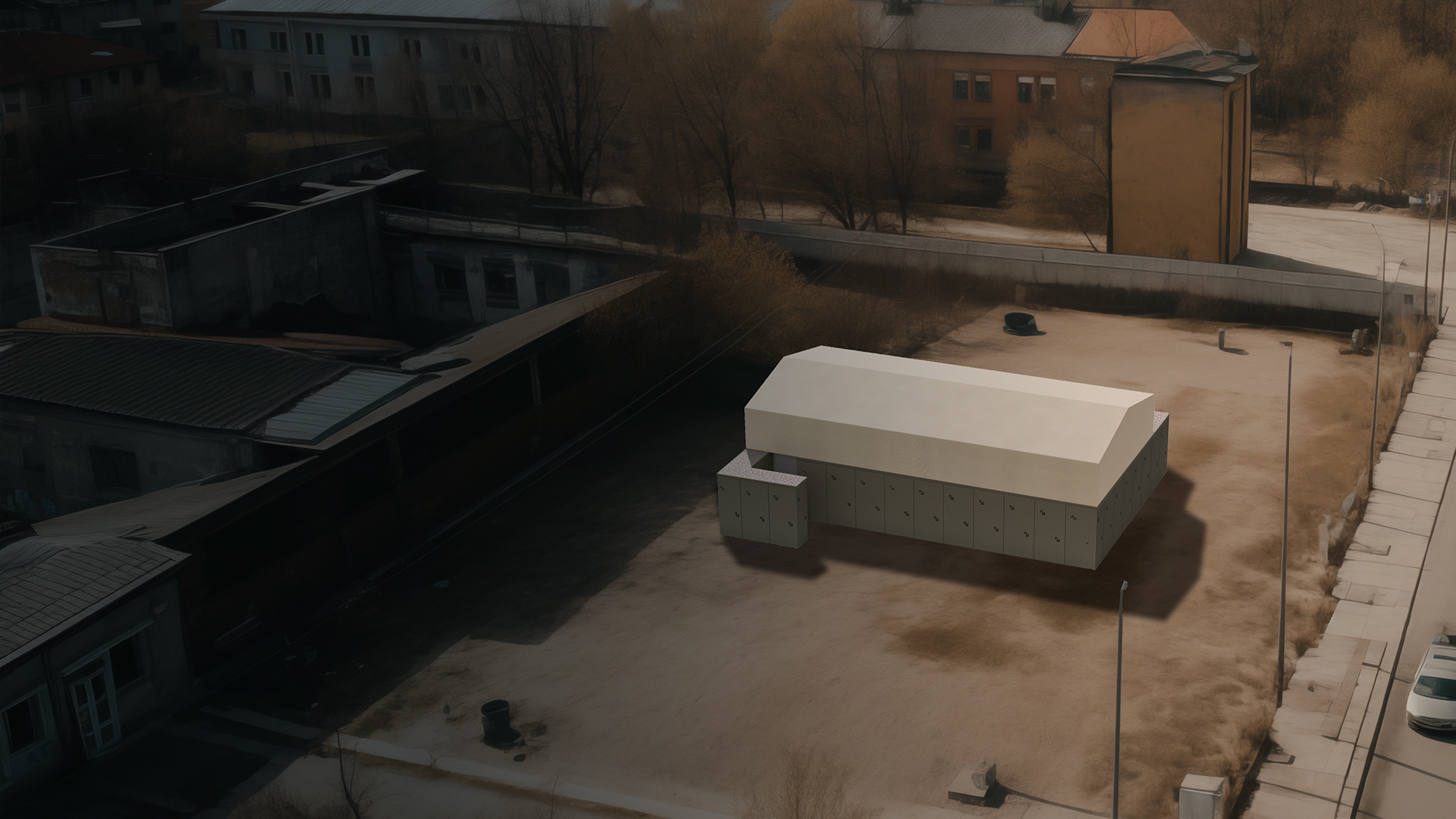

C OPS Wall Configuration

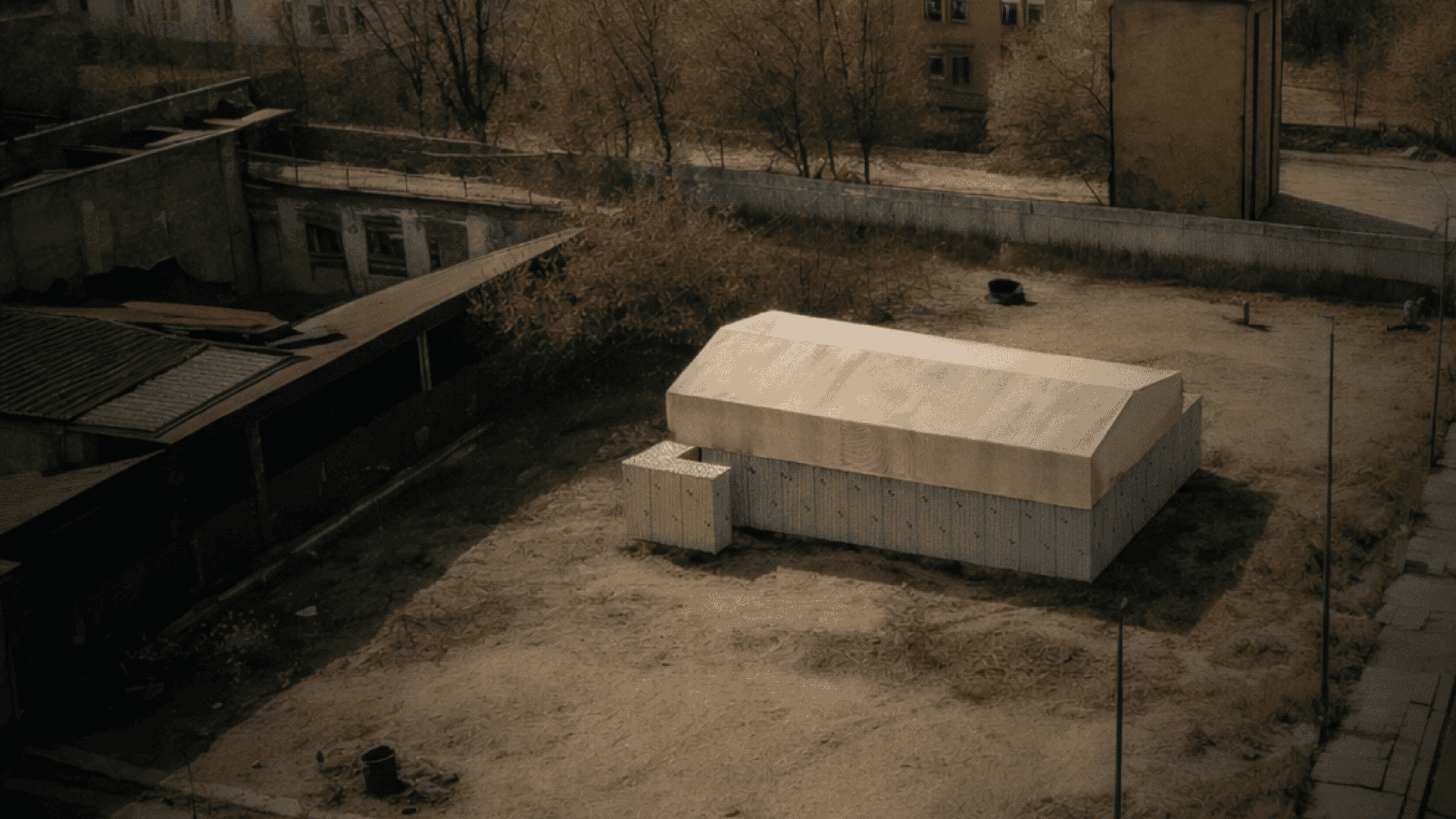

C-OPS: CONFIGURABLE OVERHEAD PROTECTION SYSTEM

COMPLETELY CONFIGURABLE OVERHEAD PROTECTION OF PERSONNEL, VEHICLES AND MISSION-CRITICAL ASSETS.

C-OPS is a rapidly deployable, modular overhead protection system delivering scalable protection against threats up to ATP 3.12.1.8 Cat D7*, including heavy machine guns, RPGs, mortars, artillery and high explosives.

Integrating C-OPS with DIRICKX Systems’ expeditionary barriers (EB-Units) delivers complete overhead and side protection that is configurable in virtually any layout.

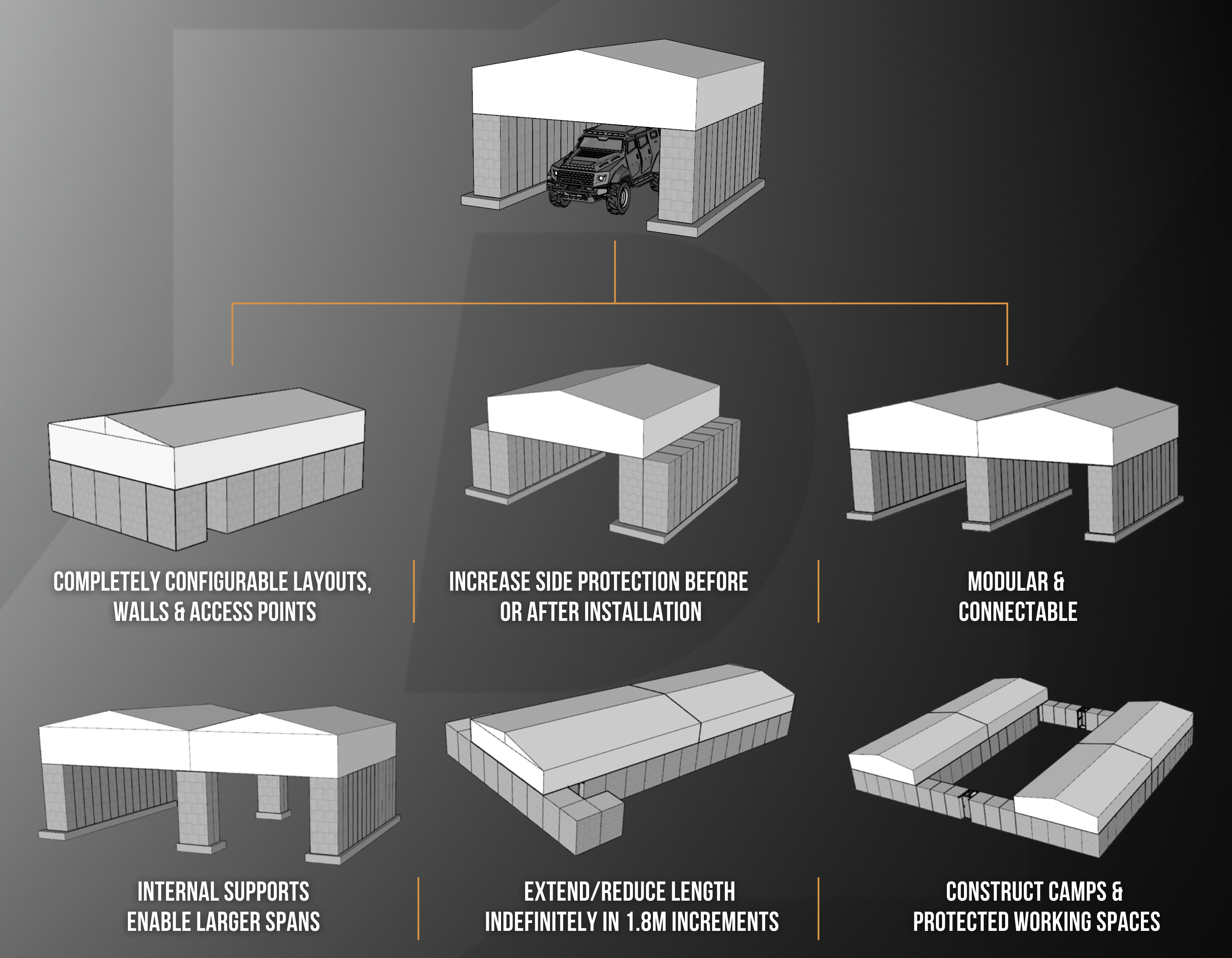

Mission-configurable & engineered to order; extend or reduce length indefinitely, connect into multi-bay shelters, increase height & protection capability via wall variants.



ONE SYSTEM. UNLIMITED CONFIGURATIONS.



*Threat categories in accordance with ATP 3.12.1.8 higher severity levels (C6, C7, D7) assume appropriate stand-off distances.

C OPS Configurations

SURFACE MOUNT, BURY, OR RETROFIT PROTECTION AGAINST THREATS UP TO ATP 3.12.1.8 CAT D7*

PROVIDING PROTECTION OF:

Containerised assets


Personnel, accommodation, medical & welfare facilities


Critical assets incl. generators & munitions


Vehicles & maintenance areas


Specialist & high value equipment

C OPS Protection Icons

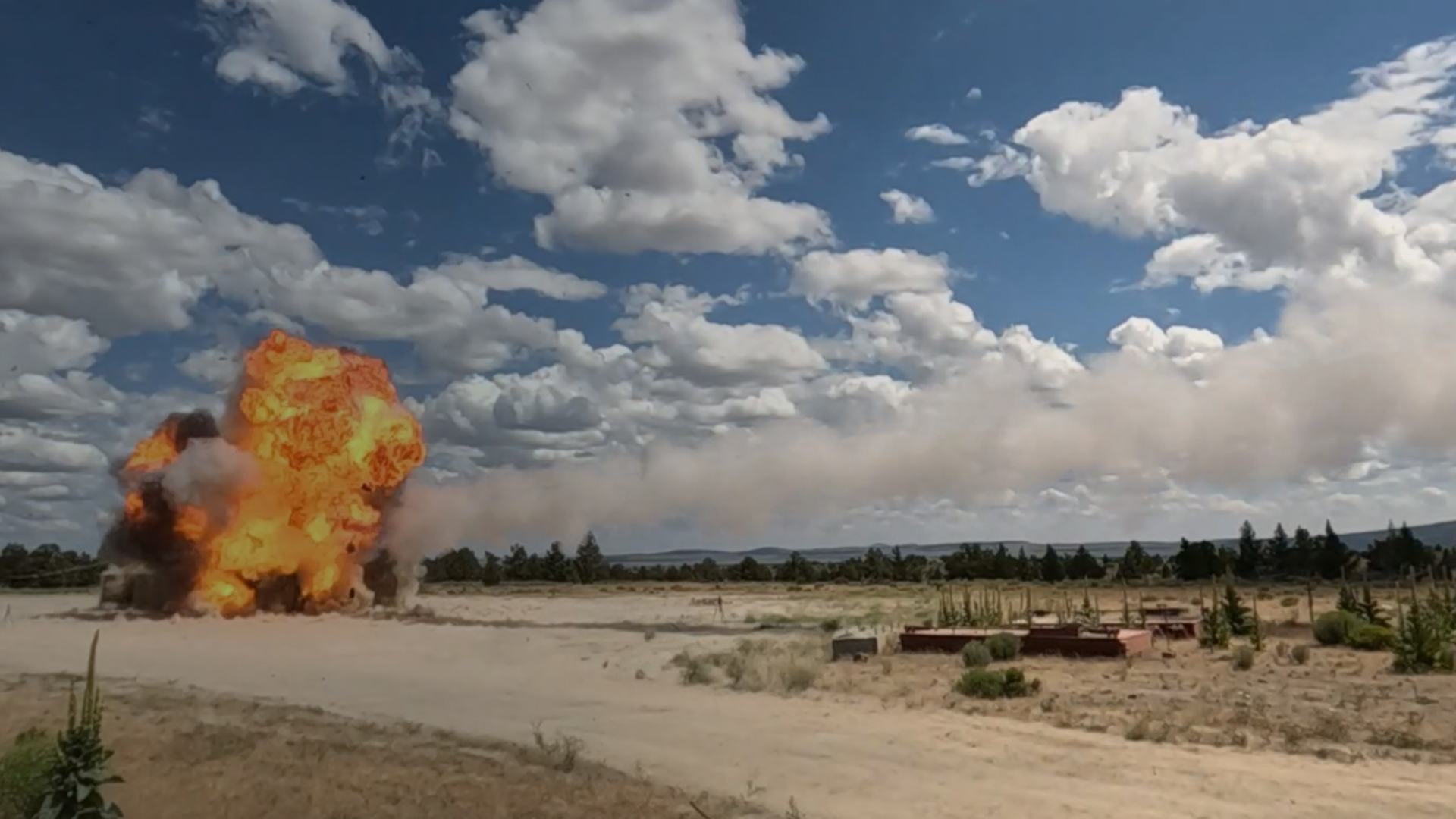

FULL-SCALE BLAST TESTED

As part of DIRICKX Systems’ rigorous annual US testing
programme, C-OPS exceeded expectations under extreme
explosive loading, with in-contact and close-proximity
detonations up to a 600 lb charge.

DIRICKX Systems Drone Explosion

SPECIFICATION

  • INTERNAL HEIGHT
  • Standard variants: 2.2 - 2.74m
  • Measurements based on using standard EB-Unit sizes as supporting walls. Subject to engineering review, greater heights are achievable via stacking.
  • INTERNAL WIDTH
  • Standard variant: 4.6m
  • C-OPS is connectable indefinitely via shared internal walls or by using internal supports to provides greater clear spans .
  • INTERNAL LENGTH
  • Standard variant: 8.7m
  • C-OPS is modular & extendable to almost any length. Standard variants are connectable. Bespoke sizes can be engineered to requirement.
