A highly effective, trusted security solution to protect lives, critical infrastructure and assets.

Unrivalled perimeter protection you can rely on.

Ensuring security in harsh and austere environments is of paramount importance. To protect against emerging threats, it is crucial to have security measures that can withstand the elements and provide effective protection.

PS-01 is our Hostile Vehicle Mitigation (HVM) rated surface-mounted perimeter fencing system designed to guard against heavy, fast-moving, land-based threats. These units can be deployed in a wide range of settings, including around critical infrastructure, government facilities, and border surveillance areas.

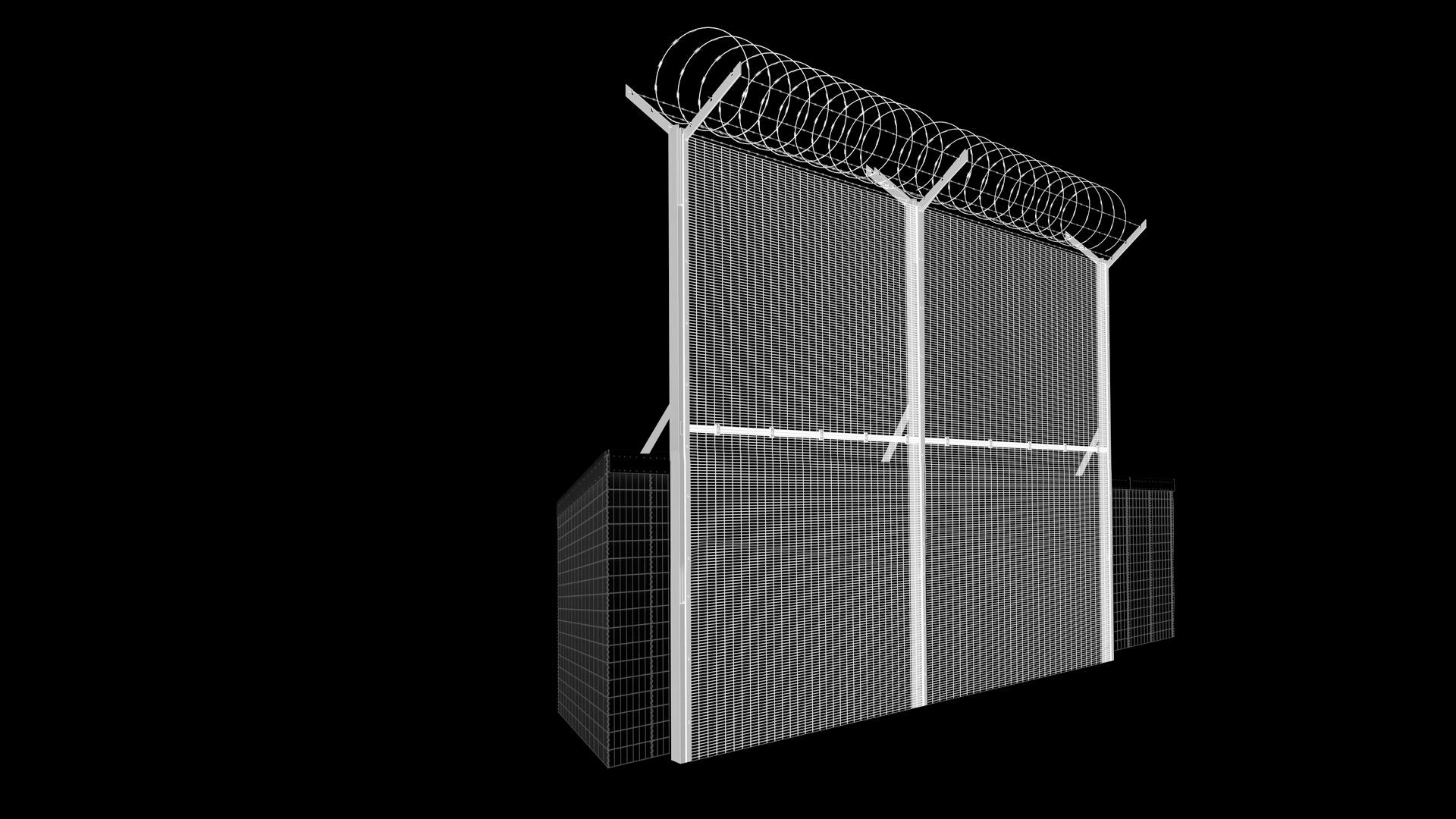

Dirickx Systems Vb01 Illustration 01 V2 Inverted Edit

The surface-mount design of PS-01 allows for swift installation without the need for pre-foundations. They are also constructed to endure harsh conditions such as extreme temperatures, severe weather, and rugged terrain.

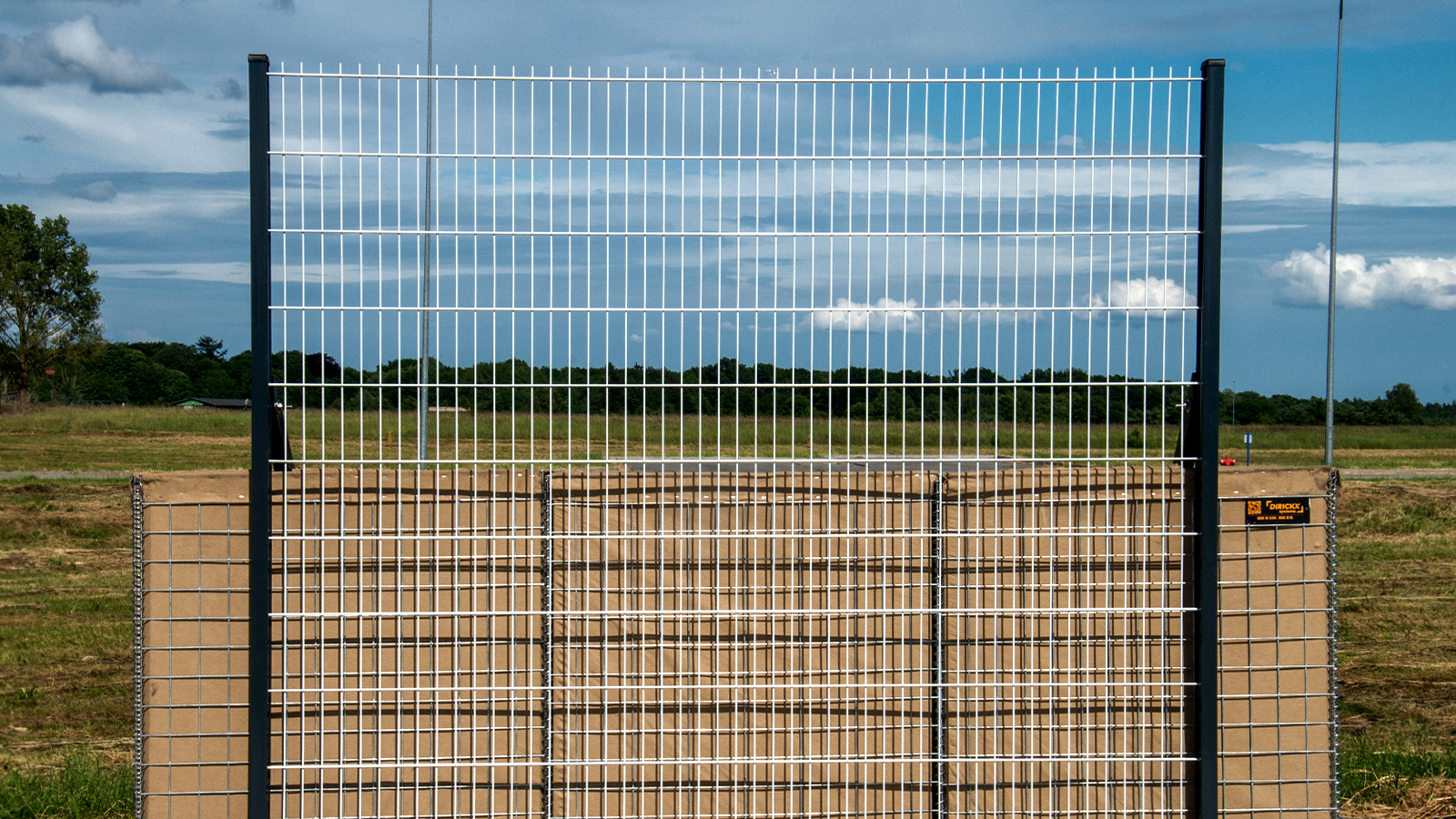

DIRICKX Systems PS-01

ROBUST, DURABLE CONSTRUCTION

Each PS-UNIT is composed of an inner geotextile lined mesh basket with an outer layer of welded mesh posts and panels to provide a highly effective security barrier. The inner lining helps to reinforce the baskets with weight, while the welded mesh panels provide additional strength and stability. By using local fill material, you can create a barrier that is both secure and cost-effective.

DIRICKX Systems VB01 Infographic 01

RAPID INTEGRATION

PS-01 can be integrated with a wide range of security systems and accessories including PIDS (Perimeter Intrusion Detection System) to help detect close range intrusion for your C2 to engage before breach.

Easily combine with other DIRICKX Systems barriers or third-party systems to create a seamless defensive structure tailored to your specific security needs.

DIRICKX Systems Eb Unit Packaging

SPECIFICATIONS

SIZES
Available in heights from 3m.
Bespoke sizes available on request

WIRE:
4mm / 5mm mild steel

COATING:
Zn95Al5 (zinc-aluminium alloy)

MESH APERTURE:
3” (76.2mm) centre-to-centre

GEOTEXTILE:
Non-woven needle punched with additional UV protection

STAPLES:
Stainless steel grade 304

AVAILABLE COLOURS:
Beige / Green

PURPOSE:
Hostile Vehicle Mitigation (HVM), Blast + ballistic protection

FILL:
Earth, sand, granular material or similar

QUALITY STANDARDS:
ASTM A 856 / BS EN 10218-2:2012 / BS EN 10244-2:2009
