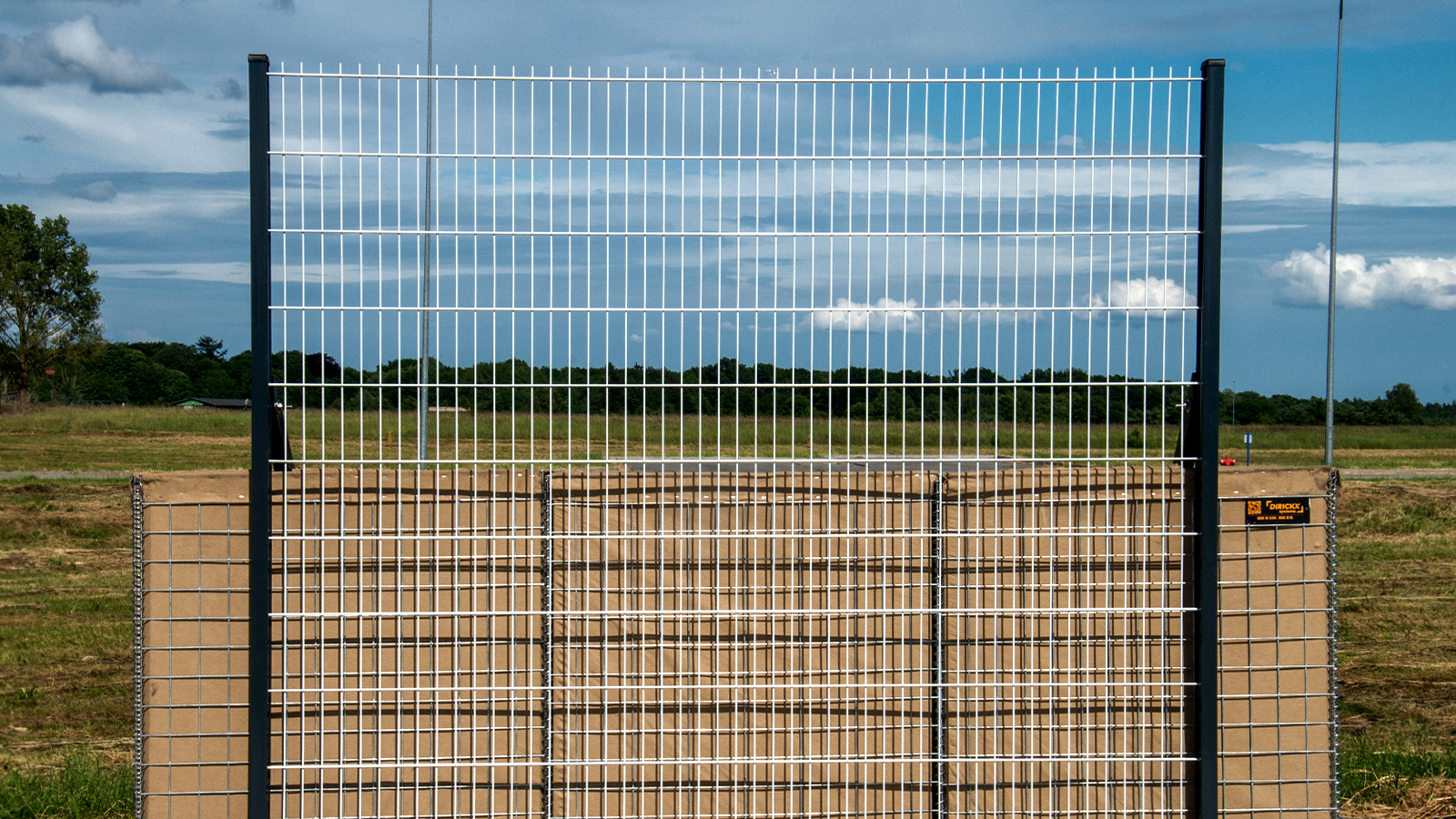

PS-01 is a Hostile Vehicle Mitigation (HVM) rated surface-mounted perimeter fencing system designed to guard against heavy, fast-moving, land-based threats.
Combining bespoke EB-Units with strengthened mesh fencing to create a high security perimeter barrier system, PS-01 is engineered to defend against hostile vehicles and intrusion in both corporate and civilian settings.
These units can be deployed in a wide range of settings, including around critical infrastructure, government facilities, and border surveillance areas.
The surface-mount design of PS-01 allows for rapid installation without the need for foundations.
Developed in-house by our team of security experts and former British Army Royal Engineers, PS-01 can withstand the impact of vehicles travelling at high speeds, preventing them from breaching the perimeter.
Compatible with a wide range of security systems and accessories including PIDS (Perimeter Intrusion Detection System), each PS-01 can operate standalone or as a multi-chain unit and be seamlessly integrated to security gates, borders and pedestrian access areas.
PS-01 is constructed to endure harsh conditions such as extreme temperatures, severe weather and rugged terrain.

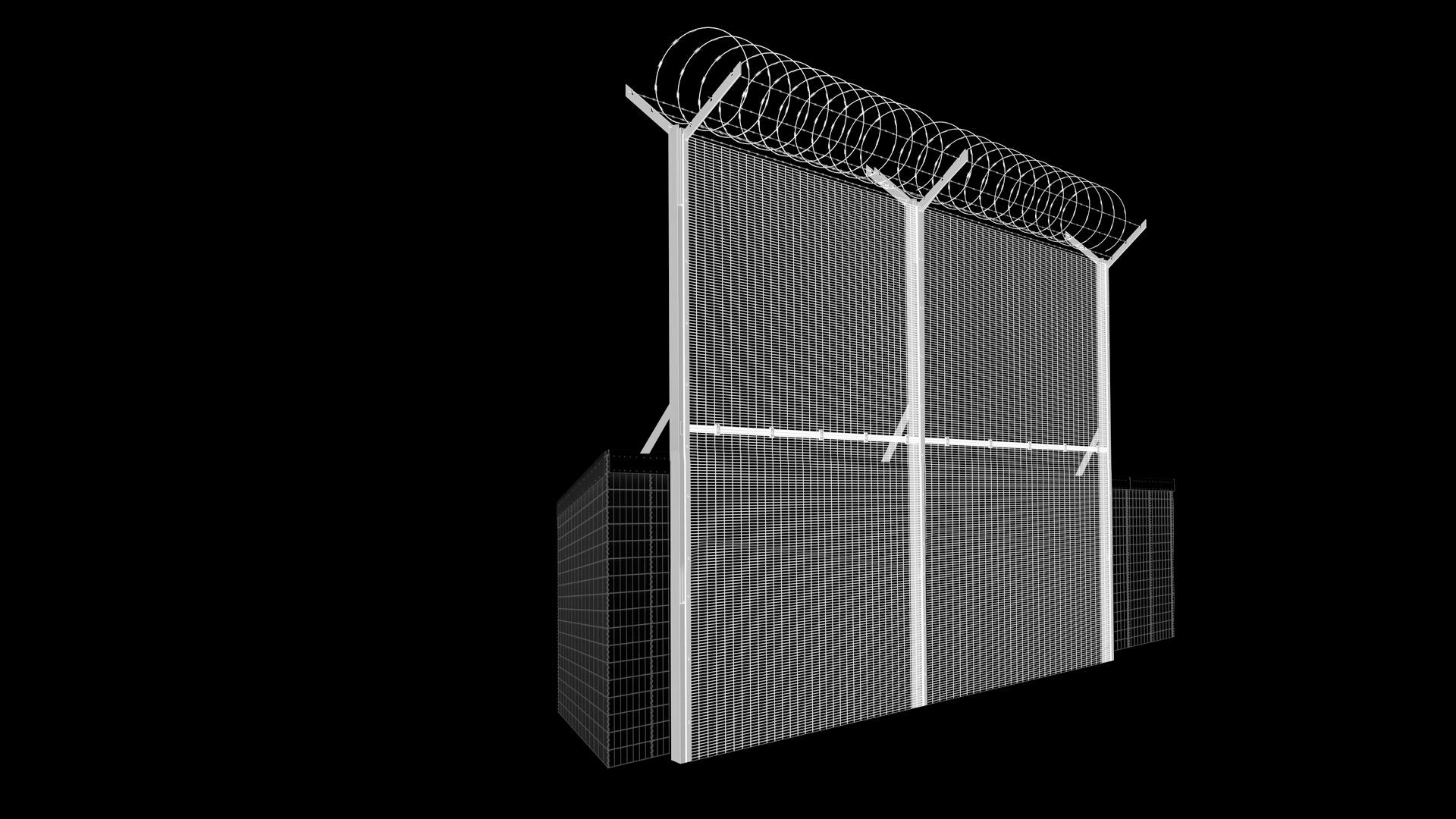

Each PS-Unit is composed of an inner geotextile lined mesh basket with an outer layer of welded mesh posts and panels to provide a highly effective security barrier.
The inner lining reinforces the baskets with weight, while the welded mesh panels provide additional strength and stability. By using local fill material, you can create a barrier that is both secure and cost-effective.
SIZES
Available in heights from 3m.
Bespoke sizes available on request
WIRE:
4mm / 5mm mild steel
COATING:
Zn95Al5 (zinc-aluminium alloy)
MESH APERTURE:
3” (76.2mm) centre-to-centre
GEOTEXTILE:
Non-woven needle punched with additional UV protection
STAPLES:
Stainless steel grade 304
AVAILABLE COLOURS:
Beige / Green
PURPOSE:
Hostile Vehicle Mitigation (HVM), Blast + ballistic protection
FILL:
Earth, sand, granular material or similar
QUALITY STANDARDS:
ASTM A 856 / BS EN 10218-2:2012 / BS EN 10244-2:2009
